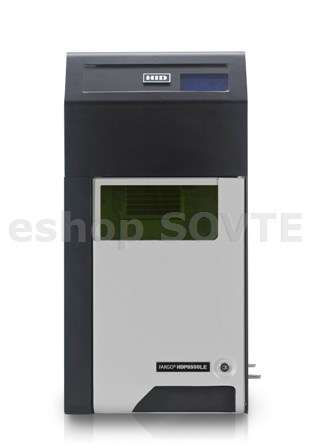

HDP8500LE Fargo Laser Engraver, Base Unit, with Camera

HDP8500LE Fargo Laser Engraver, Base Unit, with Camera

Your price without VAT
76 538.00 €
Your price with VAT
92 610.98 €
Availability
In stock Yes
Code
88918


What is the FARGO HDP8500LE Industrial Card Laser Engraver?
A new module that integrates with the printer / encoder and lamination module introduces new security features of laser engraving into ID cards. The HDP8500LE card personalization kit provides HDP printing, laser engraving, smart card coding, and customer hologram lamination.

Laser engraving equipment ensures higher card security in various programs of their government and government institutions, which bear increased responsibility for the inability to falsify or misidentify, citizenship and driving licenses, health insurance cards, etc.


What is laser engraving?
It is a highly secure method of monochrome personalizing a card that burns / engraves a theme into the card body. This provides a trace that is either fired inside the body of the card or creates tactile effect laser engraving that is tangible. Both are highly resilient personalizations whose falsification or manipulation is not practically possible.

FEATURES
Dual-Sided Printing: Standard
Warranty Printer: 3 years;  Laser module: 2 years; Laser diode: 5000 hours

LASER ENGRAVER CHARACTERISTICS
Laser Type: 12W air cooled DPSS laser
Card Material Types: Polycarbonate cards recommended, accepts ABS, PC, PET, PETG, comp.
Laser Personalization Types: Sub-surface and tactile laser engraving, microtext, MLI/CLI
Communication Interface: Ethernet LAN
Registration Capability: Optional Camera Vision System
Laser Resolution: 600 DPI
Laser Speed: Up to 2300 cards per 8-hour shift depending on amount of data (laser only)*
Power Input: 100-240 VAC, 8.5 A MAX, 50 Hz - 60 Hz
Operating Environment: 60°F to 90°F (15°C to 32°C), 20% to 80% non condensing humidity
Certifications: Class 1 Laser, UL, CE, FCC Class-A

SECURITY STANDARDS
Printer Password Protection: Yes (Workbench and display)
Locking Card Input & Output Hoppers: Yes
Lockable Printer, Engraver and Laminator Housing: Yes

COLOR PRINTING STANDARDS
Print Resolution: 300 Dpi
Single-side YMC* Print Speed: Up to 1200 cards per 8-hour shift/24 seconds per card (YMC with transfer)*
Single-side YMCK* Print Speed: Up to 992 cards per 8-hour shift/29 seconds per card (YMCK with transfer)*
Dual-side YMCKK* Print Speed: Up to 720 cards per 8-hour shift/40 seconds per card (YMCKK with transfer)*
Multiple Print Mode Selection: Yes
Simultaneous Printing/Encoding: Yes
Memory: 32MB RAM
Supported Software Drivers: Windows®XP / Server 2003 / Vista (32 bit & 64 bit) / Server 2008 R2 (64bit)/
7 (32 & 64 bit); Mac OS X v10.4 / v10.5; and Linux***
Power Input: 100-240 VAC, 3.5 A MAX, 50 Hz - 60 Hz
Certifications: UL, CE, IC, FCC Class-A, CCC, BSMI, KC, MIC, S-Mark

USER INTERFACE STANDARDS
Touch Screen Display: 3.2” display for status and help information

ENVIRONMENTAL STANDARDS
Dual-Cooling Fans: Yes
Replaceable Fan Filter: Yes

CARD STANDARDS
Card Size: CR-80 only
Card Input Capacity (2 Hoppers): 400 cards (.030" / .762mm)
Dual Input Hopper Capability: Yes
Card Output Capacity (1 Hopper): 200 cards (.030" / .762mm)
Card Thickness: Laser module: 30 mil only (.030" / .762mm)
Card Exception Feed: Yes

RIBBON STANDARDS
Cartridge Loadable Ribbons: Yes
Fluorescing/UV Ribbon: Yes
Full-Color – YMC* (maximum images per roll): 750
Full-Color – YMCK* (maximum images per roll): 500
Full-Color – YMCKK* (maximum images per roll): 500
Full-Color – Half-Panel YMCK* (maximum images per roll): 1000
HDP Film (maximum images per roll): 1500

PHYSICAL CHARACTERISTICS
Dimensions and Weight (printer): 15.5" H x 28.2"  W x 14.0" D / 394mmH x 716mmW x 356mmD
Dimensions and Weight (laminator): 13.5" H x 15.0" W x 14.0" D (343mmH x 381mmW x 356mmD); 29 lbs/13.2 kg
Dimensions and Weight (laser engraver): 20.5" H x 10.0" W x 20.0" D (521mmH x 254mmW x 508mmD); 88 lbs/40.0 kg
Heavy-Duty Metal Enclosure: Yes
Weight (printer only): Dual-sided only: 61 lbs / 27.7 kg
Heavy Duty Metal Enclosure: Yes
Fully Accessible Card Path: Yes

OPTIONS
Dual-Sided Simultaneous Lamination**: Yes
Andon Production Status Light**: Yes
ISO Card Flattener: Yes
Encoders: ISO Mag Stripe, Contactless & Contact Smart Cards **: Yes
